The power of changing the future
Customized product of KSEP

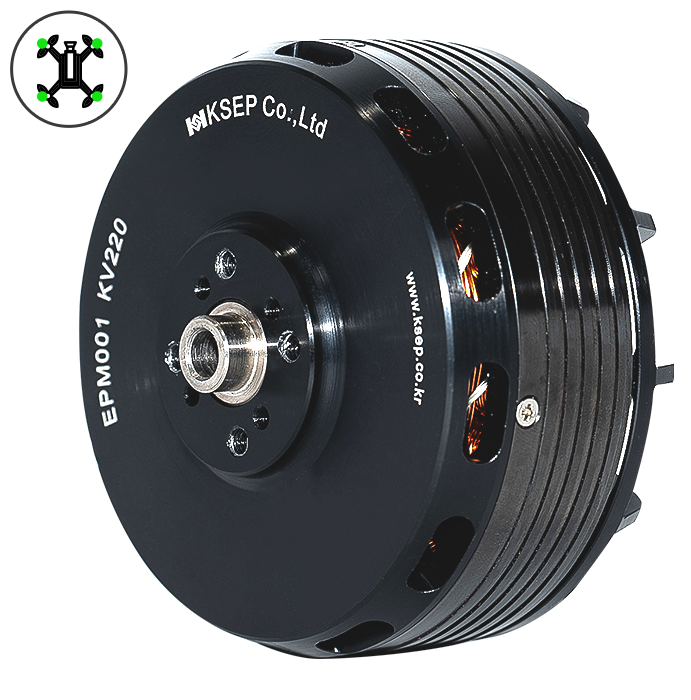

EPM001

Small and Medium Surveillance Drone Drive Motor

  • Rated Power 1.0 kW
    Rated Speed 6200 rpm
    Rated Torque 2 Nm

  • Maximum Power 4.0 kW
    Maximum Speed 8800 rpm
    Maximum Torque 3.8 Nm

  • Weight 0.6 kg
    Specific power 7 kW/kg

  • Dimension (O.DxH,mm)
    82 x 58

  • Magnetic force direction
    Radial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    93

  • Input voltage (V)
    Max. 50

  • Cooling method
    Air cooling

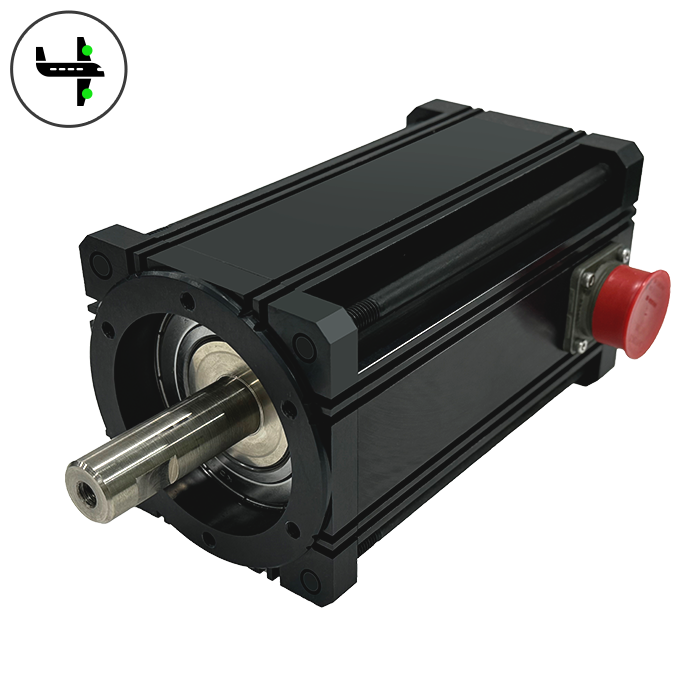

EPM002

Prop blade pitch adjustment actuator drive motor

  • Rated Power 2 kW
    Rated Speed 3700 rpm
    Rated Torque 5 Nm

  • Maximum Power 4.0 kW
    Maximum Speed 4500 rpm
    Maximum Torque 8.9 Nm

  • Weight 1.7 kg [Active]
    Specific power 2 kW/kg

  • Dimension (O.DxH,mm)
    100 x 100 x 193

  • Magnetic force direction
    Radial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    93

  • Input voltage (V)
    Max. 700

  • Cooling method
    -

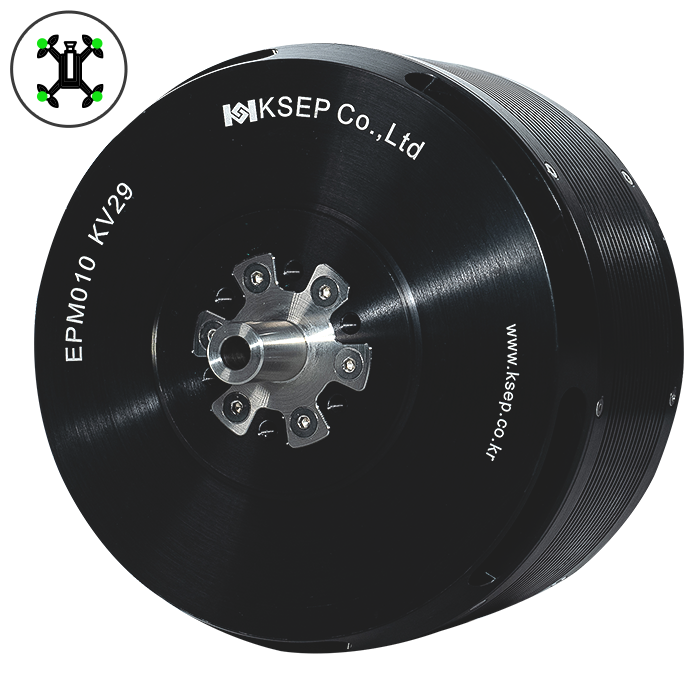

EPM010

Special purpose medium and large drone drive motor

  • Rated Power 10.0 kW
    Rated Speed 1900 rpm
    Rated Torque 50 Nm

  • Maximum Power 16.0 kW
    Maximum Speed 2000 rpm
    Maximum Torque 75 Nm

  • Weight 5.5 kg
    Specific power 3 kW/kg

  • Dimension (O.DxH,mm)
    152 x 106

  • Magnetic force direction
    Radial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    93

  • Input voltage (V)
    Max. 100

  • Cooling method
    Air cooling

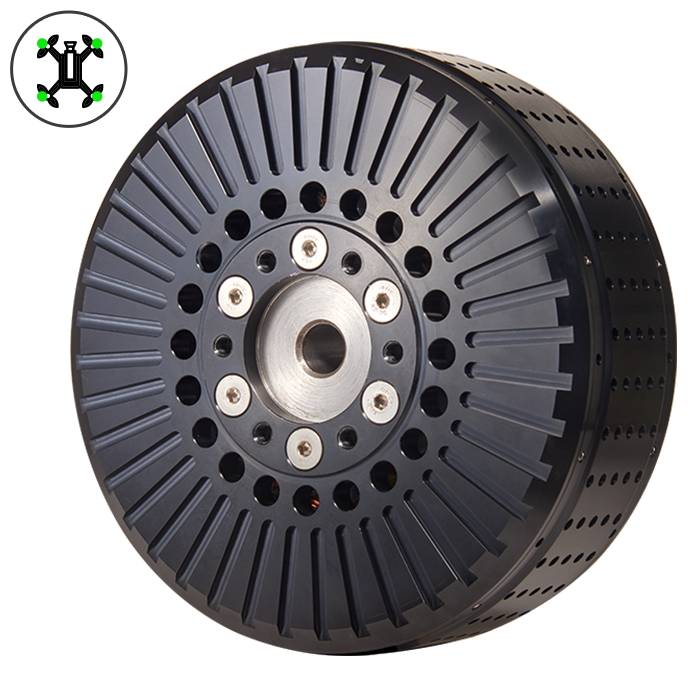

EPM035

Drone driving motor for coaxial reversal

  • Rated Power 35 kW
    Rated Speed 4500 rpm
    Rated Torque 75 Nm

  • Maximum Power 50 kW
    Maximum Speed 4500 rpm
    Maximum Torque 110 Nm

  • Weight 14 kg
    Specific power 4 kW/kg

  • Dimension (O.DxH,mm)
    235 x 85

  • Magnetic force direction
    Axial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    94-96

  • Input voltage (V)
    Max. 450

  • Cooling method
    Water cooling(8LPM)

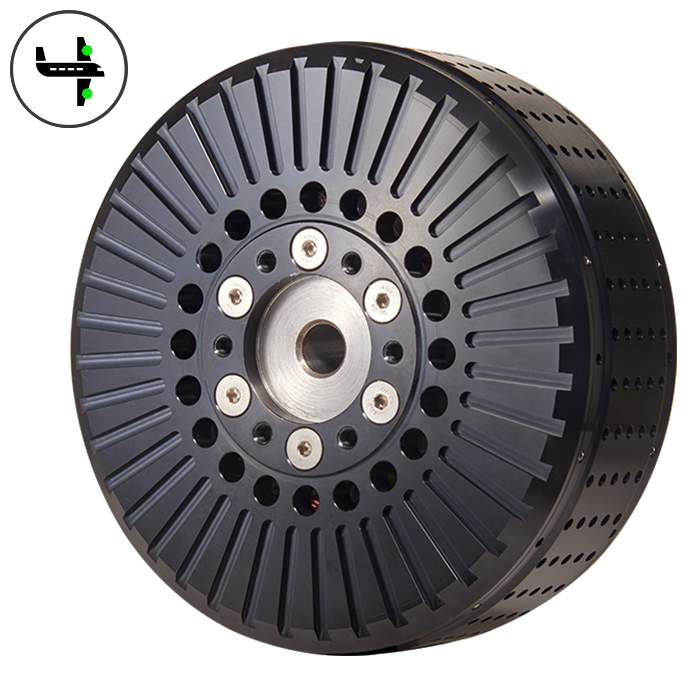

EPM050

2 to 3 passenger UAM drive motor

  • Rated Power 50 kW
    Rated Speed 2150 rpm
    Rated Torque 220 Nm

  • Maximum Power 65kW
    Maximum Speed 2500 rpm
    Maximum Torque 250 Nm

  • Weight 20.6 kg
    Specific power 3 kW/kg

  • Dimension (O.DxH,mm)
    268 x 85

  • Magnetic force direction
    Axial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    95

  • Input voltage (V)
    Max. 650

  • Cooling method
    Water cooling (8LPM)

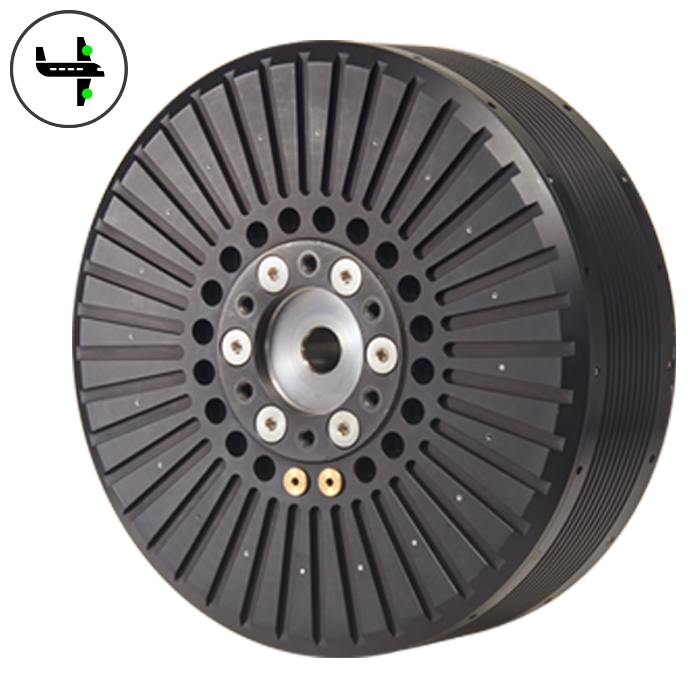

EPM100

UAM drive motor for 4 to 5 passengers

  • Rated Power 100 kW
    Rated Speed 2800 rpm
    Rated Torque 360 Nm

  • Maximum Power 180 kW
    Maximum Speed 2900 rpm
    Maximum Torque 600 Nm

  • Weight 36kg
    Specific power 5.00 kW/kg

  • Dimension (O.DxH,mm)
    330 x 95

  • Magnetic force direction
    Axial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    95

  • Input voltage (V)
    Max. 800

  • Cooling method
    Water cooling (8LPM)

EPM110

For hybrid electric propulsion system

  • Rated Power 110.0 kW
    Rated Speed 1750 rpm
    Rated Torque 600 Nm

  • Maximum Power 160 kW
    Maximum Speed 1950 rpm
    Maximum Torque 800 Nm

  • Weight 50 kg
    Specific power 3 kW/kg

  • Dimension (O.DxH,mm)
    420 x 120

  • Magnetic force direction
    Radial

  • Operation
    Outer operation(Outer ring)

  • Efficiency (%)
    94~96

  • Input voltage (V)
    Max. 580

  • Cooling method
    Water cooling (8LPM)

The motor you’ve wanted
High efficiency, slim type, lightweight
We create with optimal solutions.
